24 48 96 144core doom Vertical Mhanical seal fiber optic splitter closure 2 inlet 2outlet
product

24 48 96 144core doom Vertical Mhanical seal fiber optic splitter closure 2 inlet 2outlet

Parameter

Description:
optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box,the closure requires much stricter requirement of seal. Sealing ring and air valve are required for closure, but that are not necessary for terminal box.

Features:
1). High quality PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
2). Solid structure, perfect outline, thunder, erosion and adding resistance.
3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.
5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.

Product Name splicer fiber optic aerial closure
Structure dome Vertical Mechanical seal
Material PPR

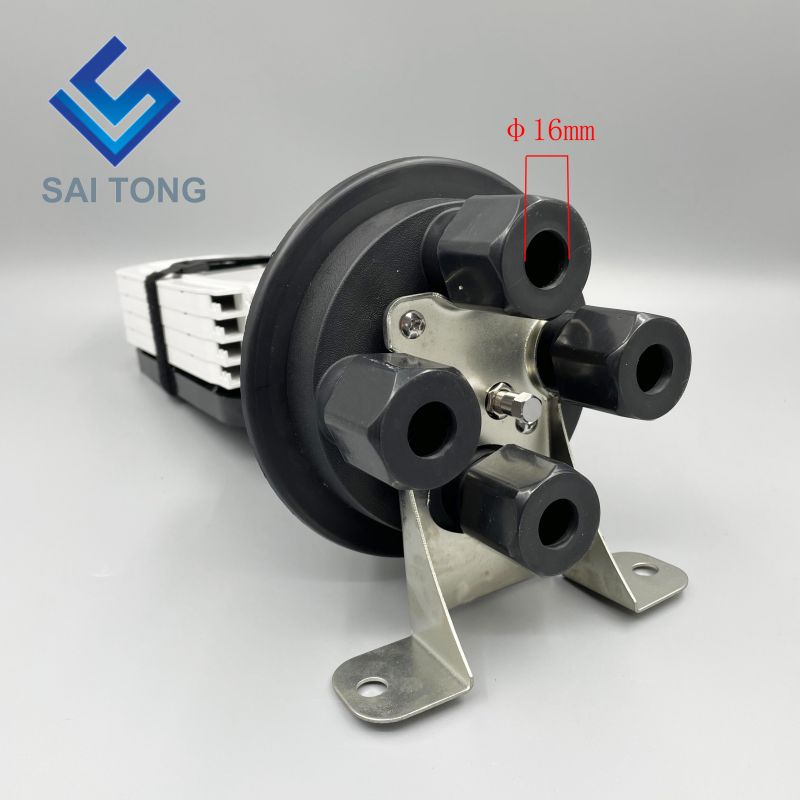

Dimension (mm): 4 small round ports(16mm)
Max Capacity 144Core
Maximum install tray Number 6
Ports 2 inlet 2 outlet
Suitable Dia of cable 4 round port(1 6mm)

About Saitong

Cixi Saitong Telecommunication Co., Ltd.

Cixi Saitong Telecommunication co., LTD., founded in 1994, is an China 24 48 96 144core doom Vertical Mhanical seal fiber optic splitter closure 2 inlet 2outlet suppliers and ODM 24 48 96 144core doom Vertical Mhanical seal fiber optic splitter closure 2 inlet 2outlet company. We company has the perfect production and development system, as well as the comprehensive testing equipment. We have also established the quality assurance system which is in accordance with the iso9001 international management standards. After more than 20 years in the field of communication network technology accumulation, we company have the ability to provide a full range of products and solutions, such as the integrated wiring system (all - LAN), optical fiber to the home (FTTH) system, custom 24 48 96 144core doom Vertical Mhanical seal fiber optic splitter closure 2 inlet 2outlet and the total distribution system (MDF) and so on.
