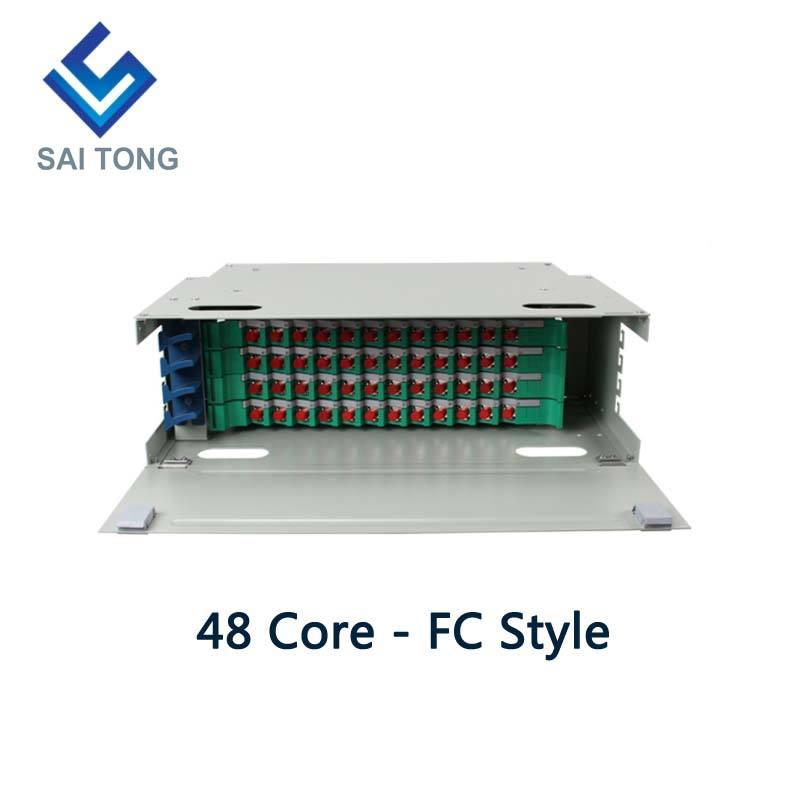

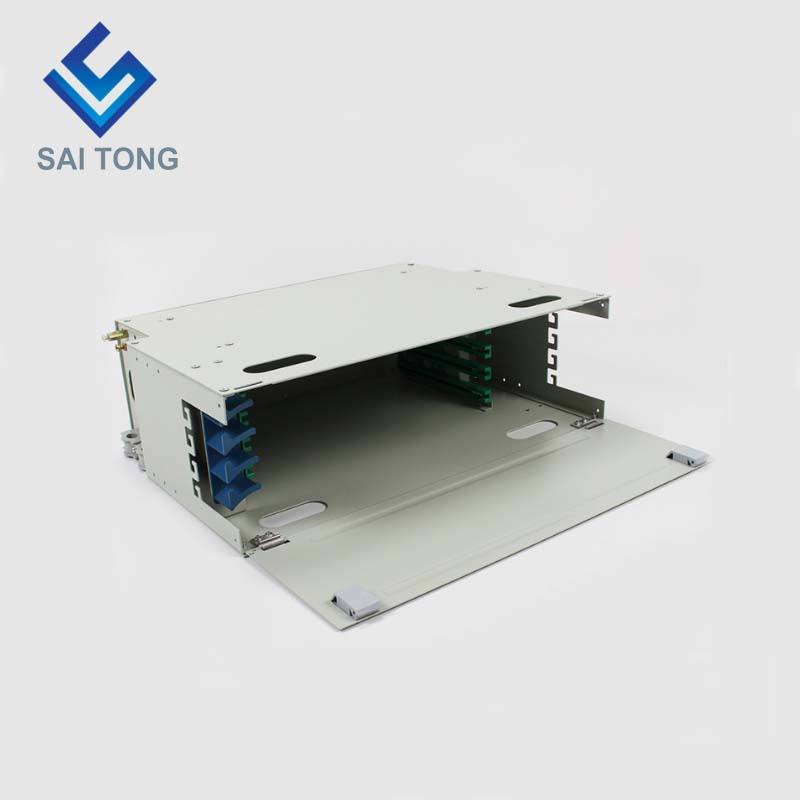

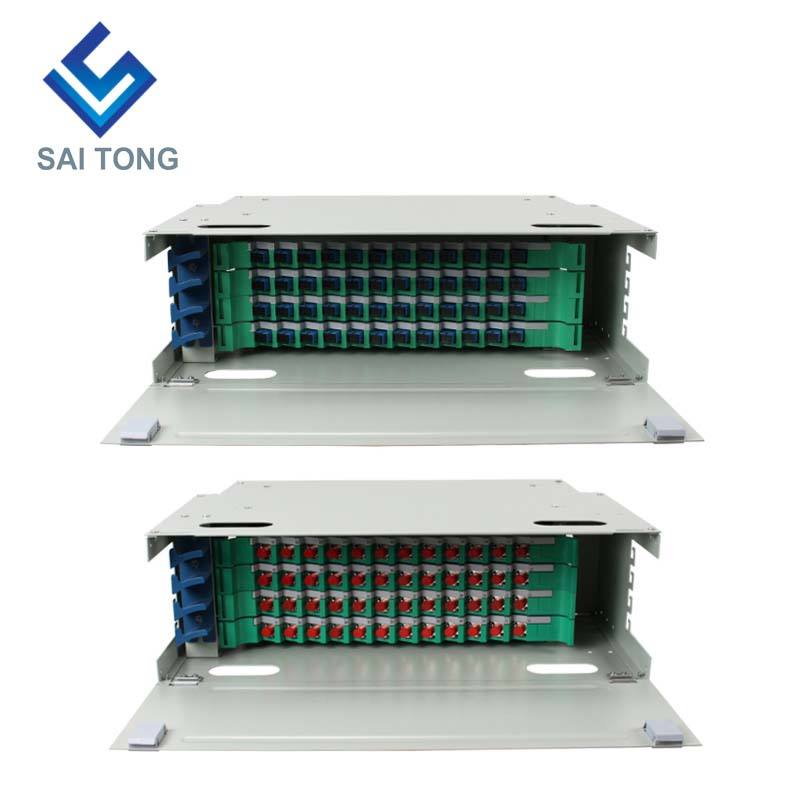

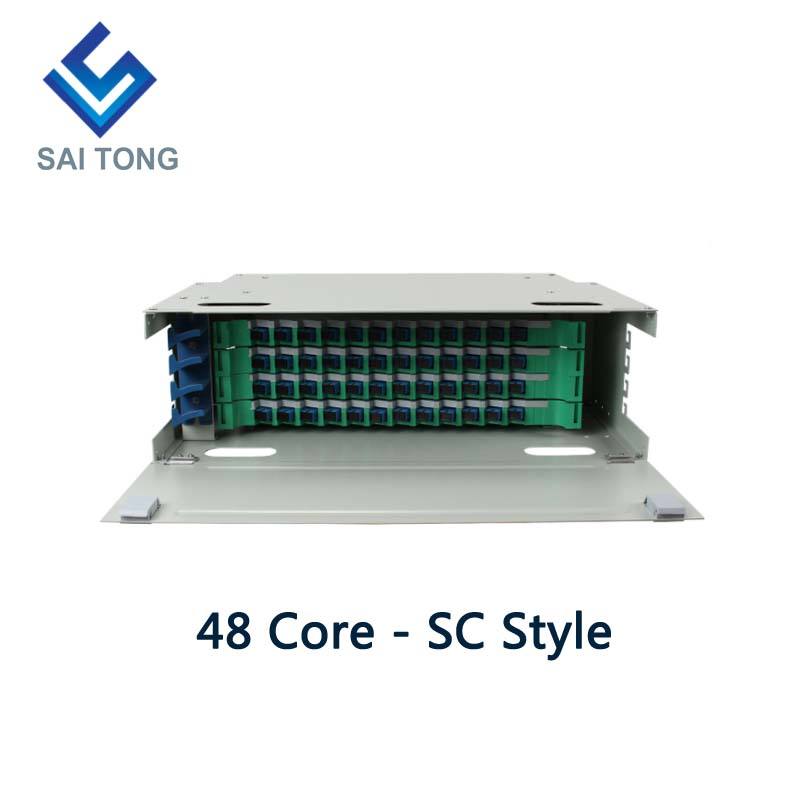

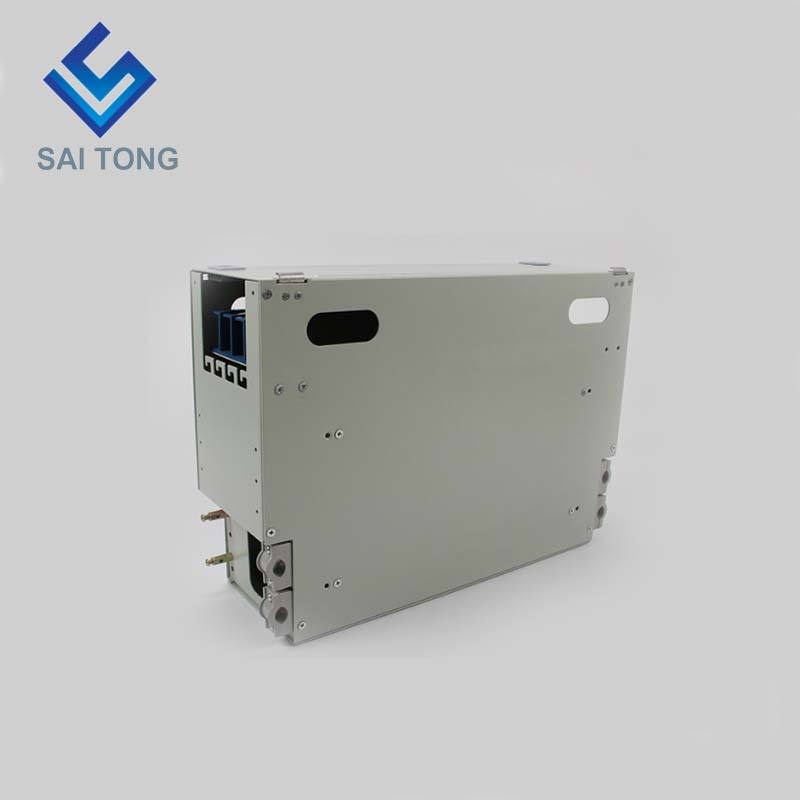

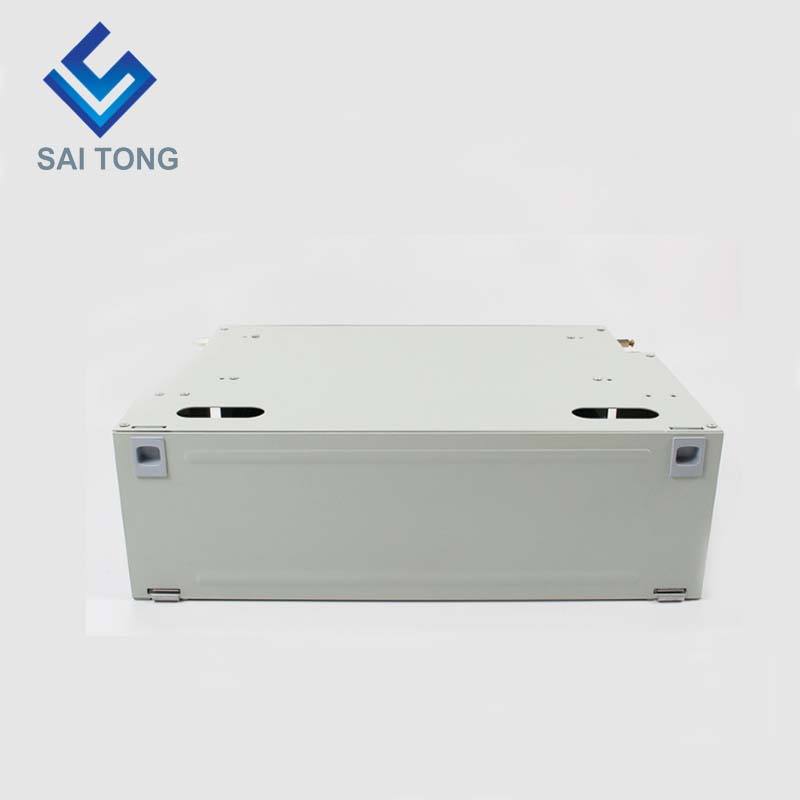

SaiTong FTTH 19 Inch Rack Mount 48 Port Cabinet SC/FC ODF 4 U 48 core Optical fiber Distribution Frame Optional Full Load
product

SaiTong FTTH 19 Inch Rack Mount 48 Port Cabinet SC/FC ODF 4 U 48 core Optical fiber Distribution Frame Optional Full Load

  • SaiTong FTTH 19 Inch Rack Mount 48 Port Cabinet SC/FC ODF 4 U 48 core Optical fiber Distribution Frame Optional Full Load
  • SaiTong FTTH 19 Inch Rack Mount 48 Port Cabinet SC/FC ODF 4 U 48 core Optical fiber Distribution Frame Optional Full Load
  • SaiTong FTTH 19 Inch Rack Mount 48 Port Cabinet SC/FC ODF 4 U 48 core Optical fiber Distribution Frame Optional Full Load
  • SaiTong FTTH 19 Inch Rack Mount 48 Port Cabinet SC/FC ODF 4 U 48 core Optical fiber Distribution Frame Optional Full Load
  • SaiTong FTTH 19 Inch Rack Mount 48 Port Cabinet SC/FC ODF 4 U 48 core Optical fiber Distribution Frame Optional Full Load
  • SaiTong FTTH 19 Inch Rack Mount 48 Port Cabinet SC/FC ODF 4 U 48 core Optical fiber Distribution Frame Optional Full Load
Contact Us
Parameter
Description:
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.

Features:
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 12C，24C, 36C, 48C, 72C 96C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
Product Name 48 core Optical fiber Distribution Frame
Material Plastic parts ABS, box cold rolled sheet
Size 430x300x138mm
Fiber Port FC, SC, ST and LC
Specification Standard 19" Rack
Number of ODF disks 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12
Net Weight 5.8KG
Application FTTH FTTB FTTX Network
